Gasoline Tiller

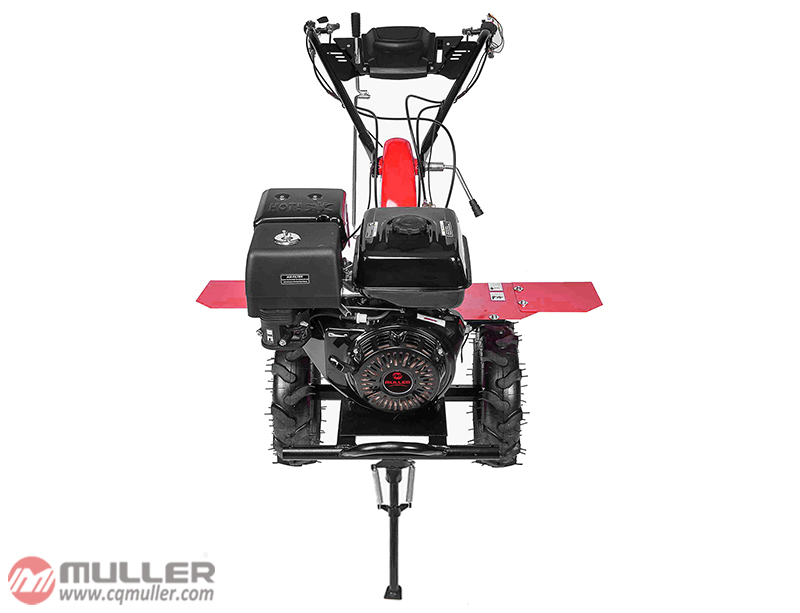

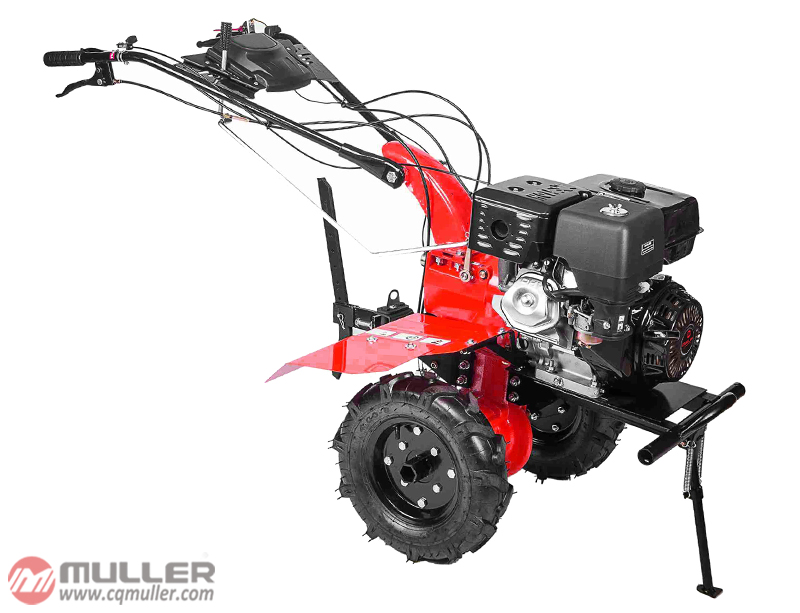

Gasoline Tiller ML135GED with differential ◆The operation is free from flat land, hill and hillside restrictions. It can move smoothly and operate in small pieces of land in mountains and hills. And it can operate freely due to its small size in small farming area, such as vegetable greenhouses, orchards, vegetable gardens to achieve a mechanized operation. ◆Tools are complete. In addition to standard tools, various tools can be selected to ridge, ditch, earth up, weeding etc. according to local farming needs. And it can meet the operation needs in both flooded field and drought field. ◆The tillage depth is controlled by easy-adjusted damping arm. ◆Easy to use, operate and learn.

Specification Spare Parts

Model	ML105GD	ML135GAD	ML135GBD	ML135GCD	ML135GDD	ML135GED
Engine power,hp	7HP	7HP	9HP	13HP	15HP	17HP
Fuel capacity,l	3.6	3.6	6	6	6	6
Engine oil capacity,l	0.6	0.6	1.1	1.1	1.1	1.1
Transmission type	Gear transmission
Gearbox type	Small gearbox	Big gearbox
Gear shifting	2 speed or 3 speed/steering differential
Tilling width,mm	800-1200		800-1300
Tilling depth,mm	150-300		150-350
Blade type	dry land blade or deep blade 4X5/4x4 (40pieces or 32pieces)
Wheel type	19x7-8/400-8/400-10/500-12/600-12/700-10
Accessory type	open ditcher/potato harvest/single plough/mower/seeder/snowsweeper/front bumper
Starting mode	recoil start/electric start (with battery 7A,9A,18A,21A)
Weight,kg	115kg	138kg	152kg	164kg	166kg	170kg

Model	ML135GED
Engine power,hp	17HP
Fuel capacity,l	6
Engine oil capacity,l	1.1
Transmission type	gear
Gearbox type	big differential gearbox
Gear shifting	2forward,1reverse gear
Tilling width,mm	800-1300
Tilling depth,mm	150-350
Blade type	40pieces or 32pieces
Wheel type	400-8/400-10/500-12
Accessory type	open ditcher/plough
Starting mode	recoil start/electric start
Weight,kg	170kg
