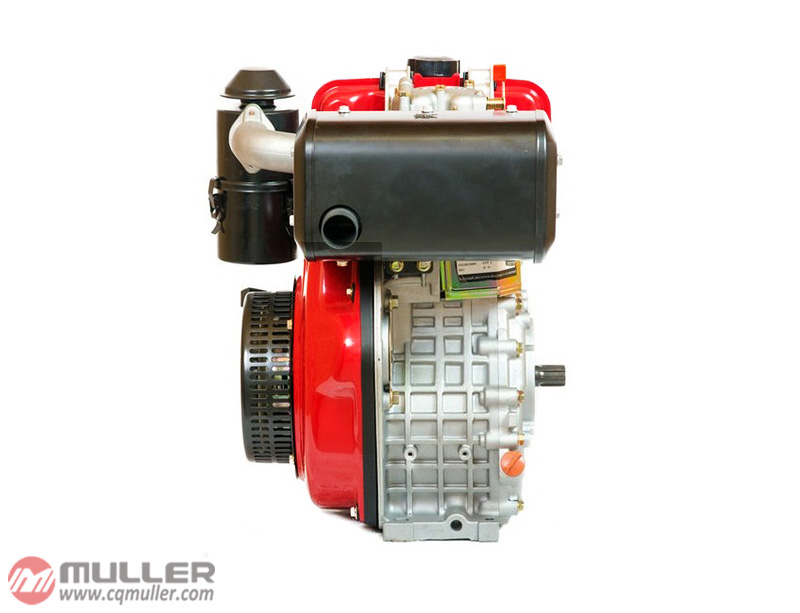

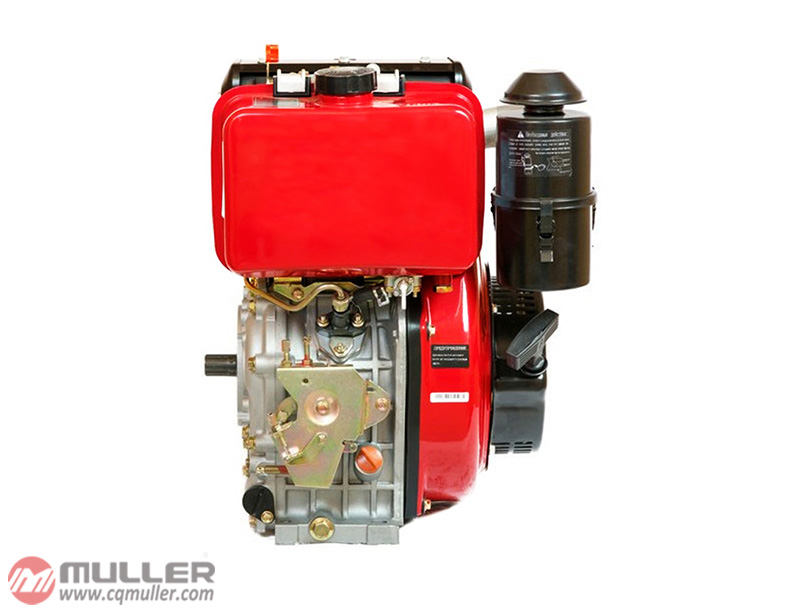

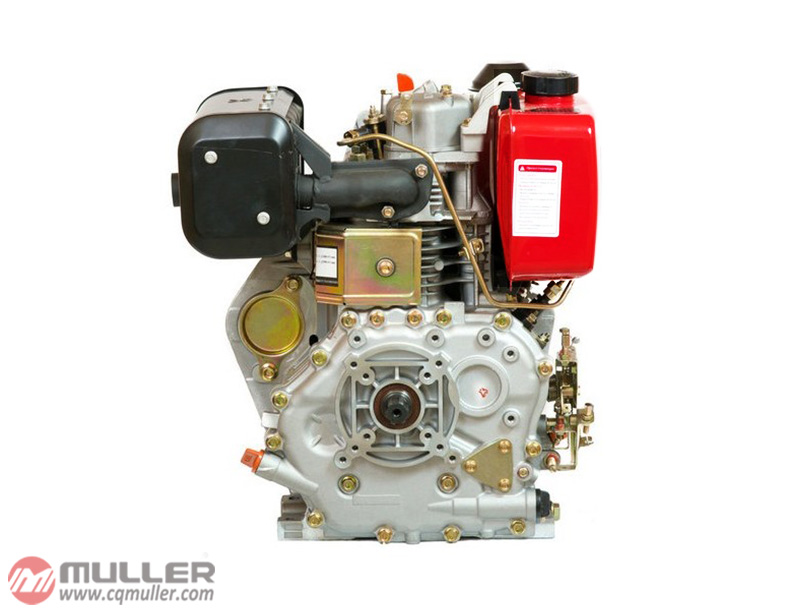

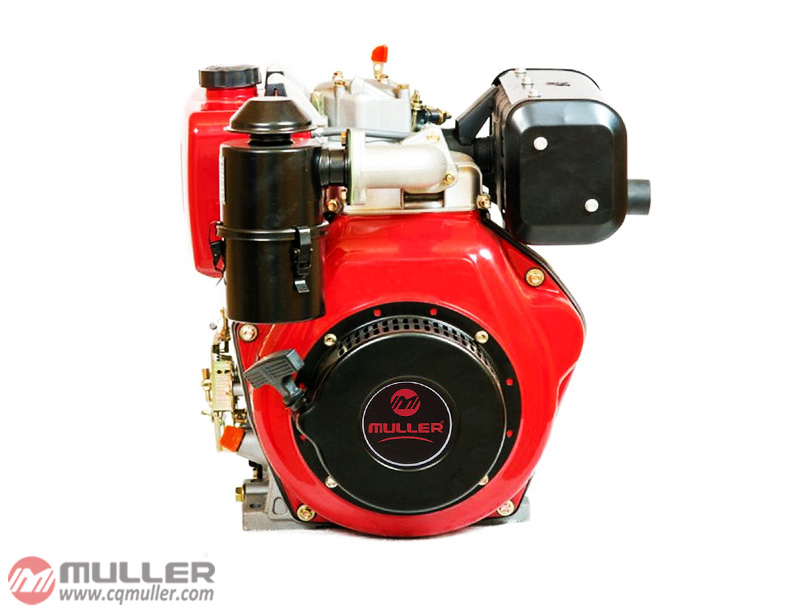

Diesel Engine MD186F ◆With new tip-clearance fuel pump and bottom inertia injection technology, combine new type combustor and high burning rate, its fuel economy is much lower than gasoline engines. ◆Large reserves of torque, strong power, supper overload capacity ◆Well-designed gear transmission structure, make the vibration decreased and noise lowed, patented air cleaner, lower the noise of air inlet and outlet. ◆Multihole injection coupled with gear motor, starts easily and reliable.

Specification Spare Parts

Model	MD173F	MD178F	MD186F	MD186FA	MD188F	MD190F	MD192F
Engine Type	1-Cylinder,4-Stroke,Air-cooled ,Veritical
Bore x Stroke[mm]	73x59	78x62	86x70	86x72	88x75	90x75	92x75
Displacement	247	296	406	418	456	477	499
Compression Ratio	20:1	20:1	19:1	19:1	19:1	19:1	19:1
Rated Speed[rpm]	3000/3600	3000/3600	3000/3600	3000/3600	3000/3600	3000/3600	3000/3600
Rated Power[Kw]	3.5/3.8	3.68/4	5.5/6	5.7/6.3	6.5/7.2	6.7/7.3	7.6/8.2
Fuel tank capacity,l	2.5	3.5	5.5	5.5	5.5	5.5	5.5
Engine oil capacity,l	0.75	1.1	1.65	1.65	1.65	1.65	1.65
Combustion System	Direct injection
Fuel type	0#(summer), -10#(winter) Diesel oil
Oil type	SAE10W30 ( above CD grade )
Dimension	332x376x415	383x421x450	417x441x494	417x441x494	417x441x494	417x441x494	417x441x494

Model	MD186F
Engine Type	1-Cylinder,4-Stroke
Bore x Stroke[mm]	86x70
Displacement	406
Compression Ratio	19:1
Rated Speed[rpm]	3000/3600
Rated Power[Kw]	5.5/6
Fuel tank capacity,l	5.5
Engine oil capacity,l	1.65
Combustion System	Direct injection
Fuel type	0#(summer),10#(winter)
Oil type	SAE10W30
Dimension	417x441x494
