| ML168F-2R | ML170F-2R | ML177F-2R | ML188F-2R | ML192F-2R | ||||
| Engine type | Single cylinder,4stroke,forced cooling | |||||||
| Fuel tank capacity,l | 3.6 | 6 | ||||||
| Engine oil capacity,l | 0.6 | 1.1 | ||||||
| Displacement,cm³ | 196 | 208 | 270 | 389 | 420 | 445 | 460 | |
| Power,hp | 6.5 | 7 | 9 | 13 | 15 | 17 | 18.5 | |
| Weight,kg | 15 | 15 | 27 | 29 | 29 | 30 | 30 | |
| Starting mode/Specification | Recoil start/electric start, with engine reducer (clutch or chain) | |||||||

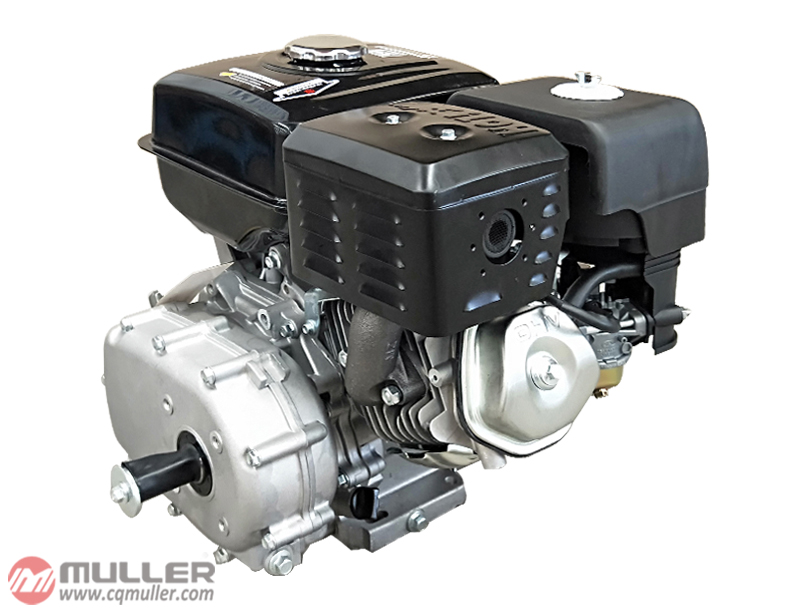

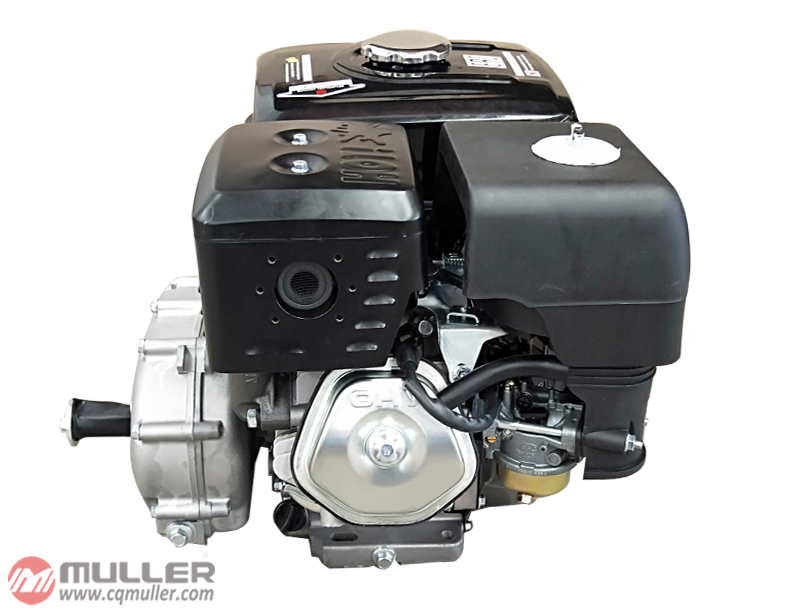

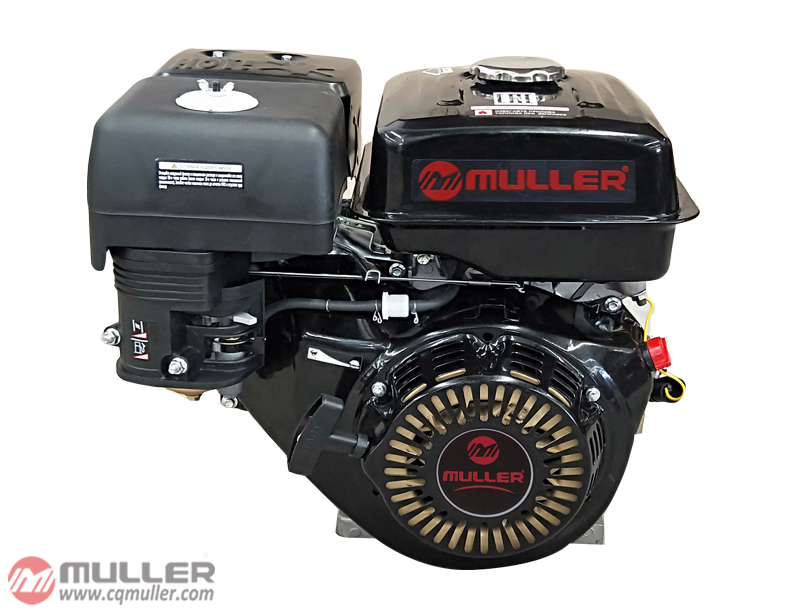

| Model | ML188F-2R |
| Engine type | OHV,single cylinder,4stroke |
| Displacement | 389cc |
| Bore×Stroke | 88mm×64mm |
| Engine power | 13HP |
| Idle speed | 1400±150r/min |
| Compression ratio | 8.1∶1 |
| PTO shaft rotation | Anti-clockwise(from PTO) |
| Noise | ≤70B(A) |
| Ignition system | Transistorized magneto |
| Starting system | Recoil start/Electic-start |
| Carburetor | Butterfly |
| Lubrication system | Splash |
| Governor system | Centrifugal mass type |
| Air cleaner | Semi-dry,element,Oil bath |
| Oil capacity | 1.1L |
| Fuel tank capcity | 6L |
| Net weight | 40kg/41kg |
| Dimension | 490×435×520 |
|
